Setting up your CI/CD with Docket

Pre-requisites 🚨
  1. Make sure you have a Github account (with admin access to repos you’d like to connect)
  2. Make sure you have a Docket account
  3. Make sure you have a Docket API Key
    1. Can’t find one? No worries, e-mail boris@docketqa.com for support!
Set-up Process 🚀
  1. Add your Docket API key to your Github Org
    1. Open the repo you’d like to connect on Github
    2. Click on Settings > Security > Secrets and variables > Actions
    3. Create a new Repository Secret, name it DOCKET_API_KEY

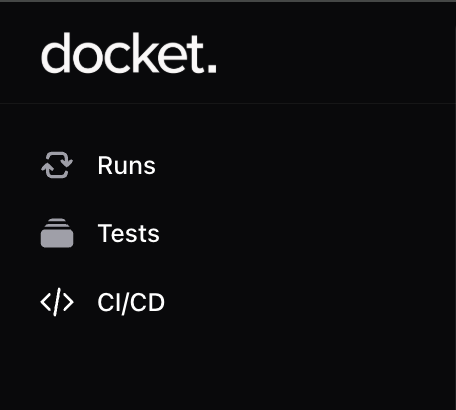

  2. Log-in to app.docketqa.com and click on CI/CD Screenshot_2025-05-21_at_7.17.39_PM.png

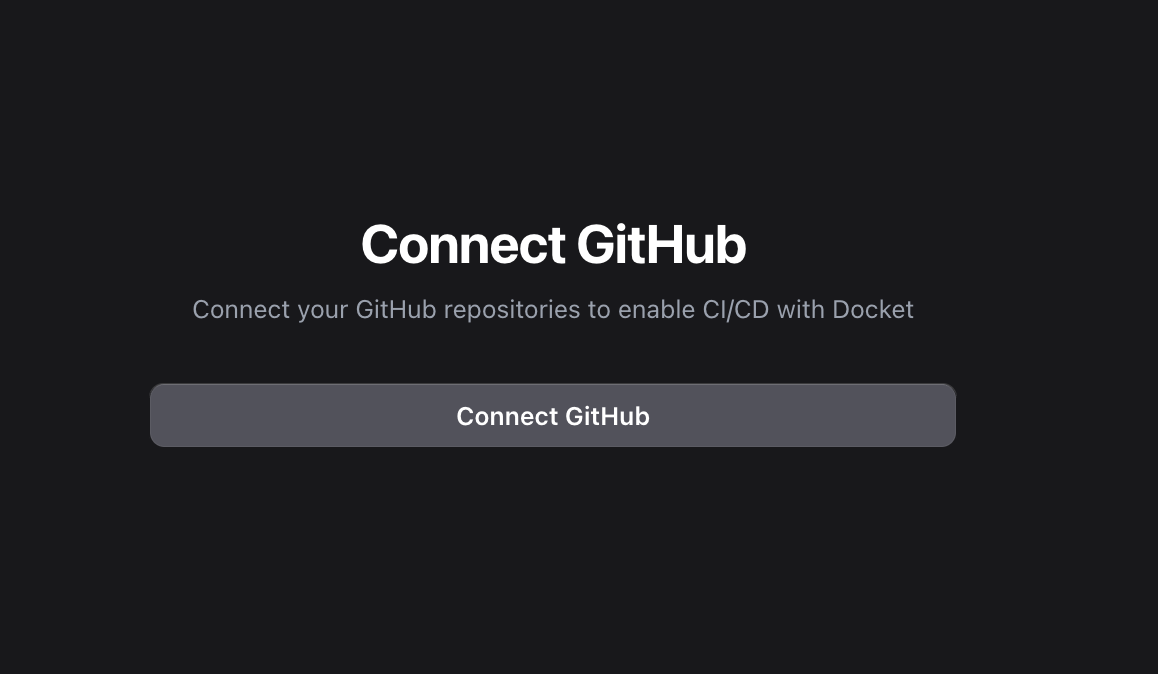

  3. You should see a big Connect GitHub button, click it Screenshot_2025-05-21_at_7.20.31_PM.png

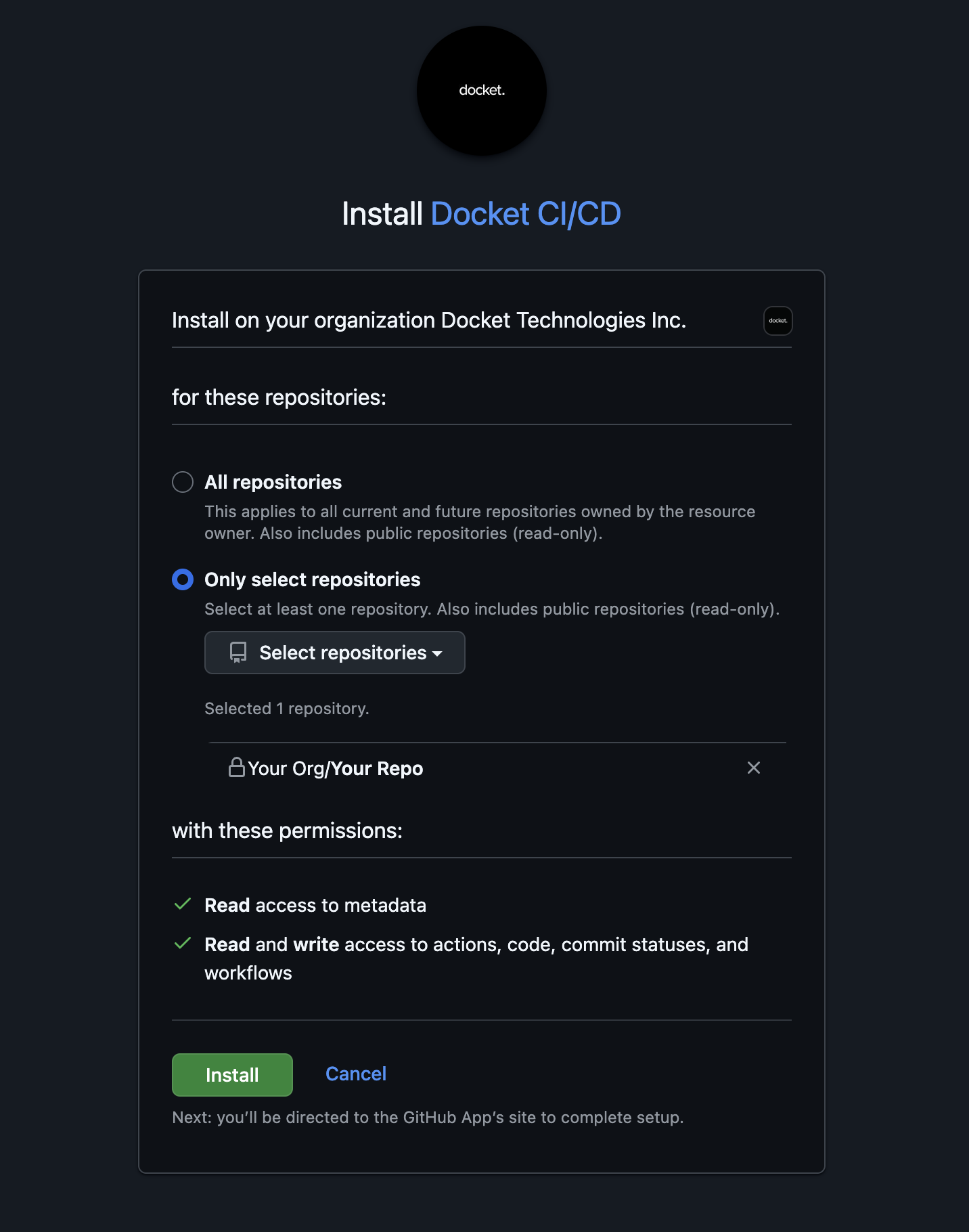

  4. Follow the installation instructions & select your repo Screenshot_2025-05-21_at_7.30.00_PM.png

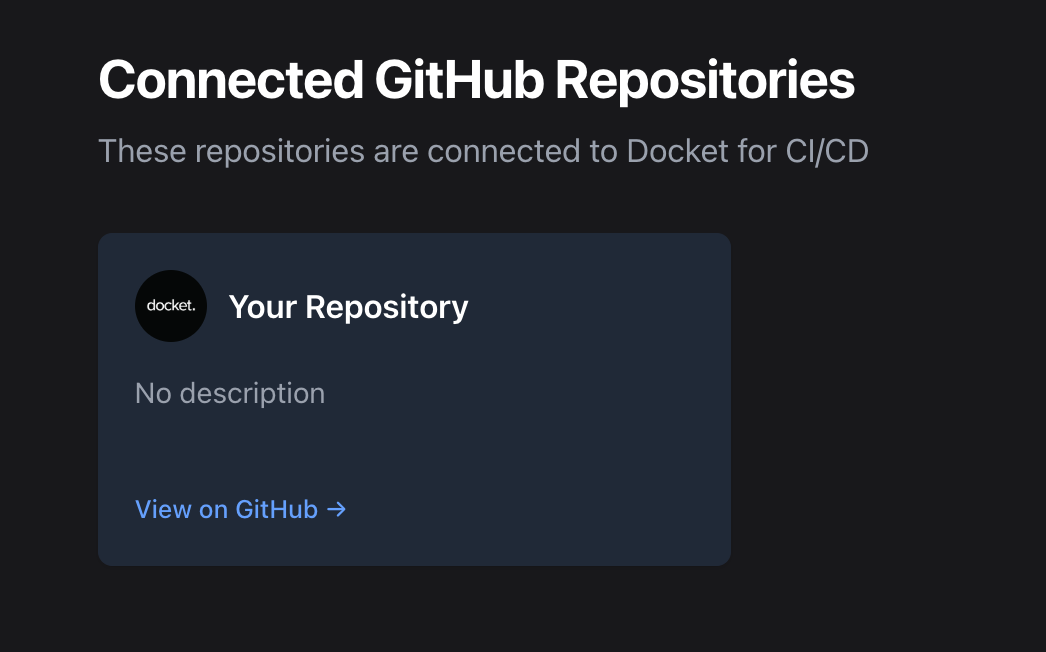

  5. After you click Install , you should be re-directed back to Docket. Click View Connected Repos . You should now see the connected repo Screenshot_2025-05-21_at_7.33.05_PM.png

How the Gated Deployment Process Works

  1. Trigger: Your deployment workflow is typically triggered by an event like a tag push (e.g., v1.0.0). This kicks off a Test Suite run on Docket.
  2. QA Status Check: The workflow identifies the specific commit associated with the trigger and polls GitHub for a commit status from Docket QA (e.g., a status with the context ci/docket-qa). When Docket finishes running your test suite, it notifies Github about the pass/fail status of the commit.
  3. Automated Path (QA Passes):
    • If the Docket QA status for the commit is success, the workflow proceeds to deploy your application automatically.
  4. Manual Override Path (QA Fails or Times Out):
    • If the Docket QA status is failure, error, or if the check times out before a success status is received:
      • The workflow will not automatically deploy.
      • Instead, a manual approval process is initiated which involves creating a GitHub Issue detailing the QA failure and asking for a decision.
      • Designated approvers (specified in the workflow) can review the situation and comment on the issue (e.g., with /approve or /reject).
      • If approved, the workflow proceeds with the deployment.
      • If rejected or if the approval request times out, the deployment is halted, and the workflow job fails.
This ensures quality control via Docket QA while providing the necessary flexibility for authorized manual overrides. Add .github/workflows/release-pipeline.yml
This is an example workflow for the release step of your CI/CD pipeline. In short, it assigns a pending status to the release commit and kicks off a Docket test run using: your Docket API Key + the test_blueprint_category_id of your test group in docket (this id resembles a grouping of all the QA tests you want to run).
name: Release Pipeline with Docket QA

on:
  release:
    types: [published]
  workflow_dispatch:
    inputs:
      tag_to_qa:
        description: 'Git tag to run QA against (e.g., v1.0.0). Must exist.'
        required: true
        type: string

jobs:
  initiate_docket_qa:
    name: Initiate Docket QA Tests
    runs-on: ubuntu-latest
    permissions:
      contents: read      # To checkout the code/tag
      statuses: write    # To set the initial "pending" commit status

    steps:
      - name: Determine Ref and SHA for QA
        id: qa_commit_details
        run: |
          REF_TO_CHECKOUT=""
          SHA_FOR_STATUS="" # Will be determined after checkout for workflow_dispatch
          TAG_NAME=""

          if [[ "${{ github.event_name }}" == "release" ]]; then
            TAG_NAME="${{ github.ref_name }}"
            REF_TO_CHECKOUT="refs/tags/$TAG_NAME"
            SHA_FOR_STATUS="${{ github.sha }}" # For release events, github.sha is the commit SHA of the tag
            echo "Release event for tag: $TAG_NAME, Ref: $REF_TO_CHECKOUT, SHA: $SHA_FOR_STATUS"
          elif [[ "${{ github.event_name }}" == "workflow_dispatch" ]]; then
            TAG_NAME="${{ github.event.inputs.tag_to_qa }}"
            REF_TO_CHECKOUT="refs/tags/$TAG_NAME"
            echo "Workflow dispatch for tag: $TAG_NAME, Ref: $REF_TO_CHECKOUT. SHA will be resolved after checkout."
            # SHA_FOR_STATUS will be set in the next step after checkout
          else
            echo "::error::Unsupported event: ${{ github.event_name }}"
            exit 1
          fi
          echo "ref_to_checkout=${REF_TO_CHECKOUT}" >> $GITHUB_OUTPUT
          echo "sha_for_status_initial=${SHA_FOR_STATUS}" >> $GITHUB_OUTPUT
          echo "tag_name=${TAG_NAME}" >> $GITHUB_OUTPUT

      - name: Checkout Code for QA
        uses: actions/checkout@v4
        with:
          ref: ${{ steps.qa_commit_details.outputs.ref_to_checkout }}
          fetch-depth: 0 # Ensure tags are fetched

      - name: Resolve SHA for Tag (if not already set)
        id: resolve_sha
        run: |
          FINAL_SHA="${{ steps.qa_commit_details.outputs.sha_for_status_initial }}"
          if [ -z "$FINAL_SHA" ]; then
            # This path is mainly for workflow_dispatch, where SHA is resolved from the checked-out ref
            echo "Resolving SHA from checked-out ref: ${{ steps.qa_commit_details.outputs.ref_to_checkout }}"
            FINAL_SHA=$(git rev-parse HEAD)
            if [ -z "$FINAL_SHA" ]; then
              echo "::error::Could not resolve SHA for ref ${{ steps.qa_commit_details.outputs.ref_to_checkout }} after checkout."
              exit 1
            fi
            echo "Resolved SHA: $FINAL_SHA"
          fi
          echo "sha_for_status=${FINAL_SHA}" >> $GITHUB_OUTPUT

      - name: Set Initial QA Status to Pending
        uses: actions/github-script@v7
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          script: |
            const releaseTag = "${{ steps.qa_commit_details.outputs.tag_name }}";
            const sha = "${{ steps.resolve_sha.outputs.sha_for_status }}";

            if (!sha) {
              core.setFailed("Could not determine commit SHA to set status.");
              return;
            }

            core.info(`Setting 'pending' status for Docket QA on tag: ${releaseTag} (SHA: ${sha})`);

            await github.rest.repos.createCommitStatus({
              owner: context.repo.owner,
              repo: context.repo.repo,
              sha: sha,
              state: 'pending',
              target_url: `https://github.com/${context.repo.owner}/${context.repo.repo}/actions/runs/${context.runId}`, // Link to this workflow run
              description: 'Docket QA tests initiated, awaiting results...',
              context: 'ci/docket-qa' // Must match the context used by the listener and deploy workflow
            });
            core.info("Pending status set successfully.");

      - name: Trigger Docket QA Test
        id: trigger_docket_qa
        uses: signdocket/docket-action@v2 # Assuming this action uses the GITHUB_SHA of the checked-out commit
        with:
          apiKey: ${{ secrets.DOCKET_API_KEY }}
          repositoryFullName: ${{ github.repository }}
          # The docket-action should pick up the correct commit SHA after the checkout step.
          # Ensure the docket_run_completed event payload contains this SHA as 'commitSha'.
          testParameters: |
            {
              "test_blueprint_category_id": "3",
              "test_suite_url_overrides": {
                "3": "https://bing.com"
              },
              "test_url_overrides": {
                "15": "https://staging.docketqa.com"
              }
            }

      - name: QA Process Initiated
        run: |
          echo "Docket QA test process has been initiated for release tag: ${{ steps.qa_commit_details.outputs.tag_name }} (SHA: ${{ steps.resolve_sha.outputs.sha_for_status }})."
          echo "Docket run ID: ${{ steps.trigger_docket_qa.outputs.runId }}"
          echo "Awaiting webhook from Docket server to update commit status via the 'Docket Run Results' workflow."
.github/workflows/docket-results-qa-listener.yml When your test run completes, Docket sends a dispatch event to your Github repository. This workflow subscribes to such events and marks the release commit’s status to pass/fail depending on the outcome of the test run.
name: Docket Run Results

on:
  repository_dispatch:
    types: [docket_run_completed]

jobs:
  handle-docket-run-results:
    name: Handle Docket Run Results
    runs-on: ubuntu-latest
    permissions:
      statuses: write

    steps:
      - name: Log QA Result Payload and Map Status
        id: qa_data
        run: |
          echo "Received Docket QA run completed event!"
          echo "Client payload: ${{ toJSON(github.event.client_payload) }}"

          COMMIT_SHA="${{ github.event.client_payload.commitSha }}"
          DOCKET_SERVER_STATUS="${{ github.event.client_payload.status }}"
          DETAILS_URL="${{ github.event.client_payload.detailsUrl }}"
          SUMMARY="${{ github.event.client_payload.summary }}"
          CONTEXT_LABEL="ci/docket-qa"
          DOCKET_RUN_ID="${{ github.event.client_payload.runId }}"

          echo "Commit SHA: $COMMIT_SHA"
          echo "Docket Server Status: $DOCKET_SERVER_STATUS"
          echo "Docket Run ID: $DOCKET_RUN_ID"
          echo "Details URL: $DETAILS_URL"
          echo "Summary: $SUMMARY"
          echo "Context Label for Commit Status: $CONTEXT_LABEL"

          # Map Docket server status to GitHub commit status states
          GITHUB_COMMIT_STATE="error"

          if [[ "$DOCKET_SERVER_STATUS" == "passed" ]]; then
            GITHUB_COMMIT_STATE="success"
          elif [[ "$DOCKET_SERVER_STATUS" == "failed" ]]; then
            GITHUB_COMMIT_STATE="failure"
          elif [[ "$DOCKET_SERVER_STATUS" == "error" ]]; then
            GITHUB_COMMIT_STATE="error"
          fi

          echo "github_commit_state=${GITHUB_COMMIT_STATE}" >> $GITHUB_OUTPUT
          echo "commit_sha_output=${COMMIT_SHA}" >> $GITHUB_OUTPUT
          echo "details_url_output=${DETAILS_URL}" >> $GITHUB_OUTPUT
          echo "summary_output=${SUMMARY}" >> $GITHUB_OUTPUT
          echo "context_label_output=${CONTEXT_LABEL}" >> $GITHUB_OUTPUT

      - name: Set Final Commit Status
        uses: actions/github-script@v7
        if: steps.qa_data.outputs.commit_sha_output != '' && steps.qa_data.outputs.commit_sha_output != null
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          script: |
            const commitSha = "${{ steps.qa_data.outputs.commit_sha_output }}";
            const state = "${{ steps.qa_data.outputs.github_commit_state }}";
            const targetUrl = "${{ steps.qa_data.outputs.details_url_output }}";
            let description = "${{ steps.qa_data.outputs.summary_output }}";
            if (!description) {
              description = `Docket QA: ${state}`;
            }
            description = description.substring(0, 140);

            const contextLabel = "${{ steps.qa_data.outputs.context_label_output }}";

            core.info(`Setting commit status for SHA: ${commitSha} to '${state}' with context '${contextLabel}'`);
            try {
              await github.rest.repos.createCommitStatus({
                owner: context.repo.owner,
                repo: context.repo.repo,
                sha: commitSha,
                state: state,
                target_url: targetUrl,
                description: description,
                context: contextLabel
              });
              core.info("Commit status set successfully.");

              if (state !== 'success') {
                core.setFailed(`Docket QA tests reported as '${state}'. Summary: ${description}`);
              }
            } catch (error) {
              core.setFailed(`Failed to set commit status: ${error.message}`);
              core.error(JSON.stringify(error));
            }
Lastly, take a look at your deploy action, and optionally, add Docket QA runs as a blocking step (with manual unblocking if it does fail)!
      - name: Wait for Docket QA Status
        id: check_qa_status
        uses: actions/github-script@v7
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}
          script: |
            const commitSha = "${{ steps.resolve_final_sha.outputs.commit_sha }}";
            const owner = context.repo.owner;
            const repo = context.repo.repo;
            const expectedContext = "ci/docket-qa"; // Ensure this context name is correct
            let qaPassed = false;
            let finalQaState = "pending"; // To store the terminal state if not success

            core.info(`Waiting for commit status on SHA: ${commitSha}, Context: ${expectedContext}`);

            // Timeout after X minutes (e.g. 30 * 60 * 1000 ms)
            const timeoutMs = parseInt("${{ vars.QA_TIMEOUT_MINUTES || 30 }}") * 60 * 1000;
            const pollIntervalMs = 30 * 1000;
            const startTime = Date.now();

            while (Date.now() - startTime < timeoutMs) {
              try {
                const { data: statusesResponse } = await github.rest.repos.getCombinedStatusForRef({
                  owner,
                  repo,
                  ref: commitSha,
                });

                const docketStatus = statusesResponse.statuses.find(status => status.context === expectedContext);

                if (docketStatus) {
                  core.info(`Found status for '${expectedContext}': ${docketStatus.state}. Description: ${docketStatus.description}`);
                  finalQaState = docketStatus.state; // Update finalQaState
                  if (docketStatus.state === 'success') {
                    core.info("Docket QA status is 'success'.");
                    qaPassed = true;
                    break; // QA Passed, exit loop
                  } else if (docketStatus.state === 'failure' || docketStatus.state === 'error') {
                    // Do NOT fail the step. Log a warning. qaPassed remains false.
                    core.warning(`Docket QA status is '${docketStatus.state}'. Details: ${docketStatus.target_url || 'N/A'}`);
                    qaPassed = false;
                    break; // Exit loop, QA has reached a terminal non-success state
                  } else if (docketStatus.state === 'pending') {
                    core.info("Docket QA status is 'pending'. Waiting...");
                  } else {
                    core.info(`Docket QA status is '${docketStatus.state}'. Waiting...`);
                  }
                } else {
                  core.info(`No status found yet for context '${expectedContext}' on SHA ${commitSha}. Waiting...`);
                  finalQaState = "not_found"; // Update if no status found yet
                }
              } catch (error) {
                finalQaState = "error_fetching";
                // Do NOT fail the step. Log a warning.
                if (error.status === 404) {
                    core.info(`No statuses found for ref ${commitSha} (404). Waiting...`);
                } else {
                    core.warning(`Error fetching commit statuses: ${error.message}. Retrying...`);
                }
              }
              await new Promise(resolve => setTimeout(resolve, pollIntervalMs));
            }

            // After loop, determine final output based on qaPassed
            if (qaPassed) {
              core.info("Docket QA Passed!");
              core.setOutput('qa_passed', 'true');
            } else {
              // Log appropriate warning based on why QA didn't pass
              if (Date.now() - startTime >= timeoutMs && (finalQaState === 'pending' || finalQaState === 'not_found' || finalQaState === 'error_fetching')) {
                core.warning(`Timed out after ${timeoutMs / 60000} minutes waiting for Docket QA status on SHA ${commitSha} to be 'success'. Last known state: ${finalQaState}. QA is considered FAILED.`);
              } else if (finalQaState === 'failure' || finalQaState === 'error') {
                core.warning(`Docket QA for SHA ${commitSha} resulted in '${finalQaState}'. QA is considered FAILED.`);
              } else {
                 core.warning(`Docket QA for SHA ${commitSha} did not achieve 'success'. Last known state: ${finalQaState}. QA is considered FAILED.`);
              }
              core.setOutput('qa_passed', 'false');
            }
            // This script step itself should not fail due to QA outcome.
            // It has set the 'qa_passed' output which will drive the workflow logic.
        env:
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }} # Ensure token is available to the script

      # <<< NEW STEP: Manual Approval if QA Failed >>>
      - name: Manual Approval if QA Failed (web-final)
        id: manual_approval_web # Unique ID for this approval step
        if: steps.check_qa_status.outputs.qa_passed == 'false' # Only run if QA failed
        uses: trstringer/manual-approval@v1
        with:
          secret: ${{ secrets.GITHUB_TOKEN }}
          approvers: boris, nishant # <--- Add your usernames here
          minimum-approvals: 1
          issue-title: "QA Failed: Manual approval for web-final tag ${{ steps.resolve_final_sha.outputs.tag_name }}"
          issue-body: |
            Docket QA checks failed for commit `${{ steps.resolve_final_sha.outputs.commit_sha }}` (tag `${{ steps.resolve_final_sha.outputs.tag_name }}`).
            Deployment to `web-final` requires manual approval.
            Please review the QA results and **comment with `/approve` or `/reject` on the issue created by this step.**
            Workflow run: ${{ github.server_url }}/${{ github.repository }}/actions/runs/${{ github.run_id }}

URL Overrides

Override starting URLs for tests during CI/CD runs to test against different environments. This is particularly useful when generating preview links (like Vercel preview deployments) and you want to test against those specific environments instead of your production URLs.

Override Types

  • Test Suite URL Overrides (test_suite_url_overrides): All tests in the suite start from this URL
  • Test Suite Login URL Overrides (test_suite_account_login_url_overrides): Account belonging to this test suite will use this login URL
  • Individual Test URL Overrides (test_url_overrides): Override specific tests (takes precedence)

Vercel Preview Example

When deploying with Vercel, you might want to test your preview deployment before merging. Here’s how to override entrypoints for tests, test suites, and account login flows:
{
  "test_blueprint_category_id": ["17", "23"],
  "test_suite_url_overrides": {
    "17": "https://myapp-git-feature-branch-team.vercel.app",
    "23": "https://myapp-git-feature-branch-team.vercel.app/dashboard"
  },
  "test_suite_account_login_url_overrides": {
    "17": "https://myapp-git-feature-branch-team.vercel.app/auth/login",
    "23": "https://myapp-git-feature-branch-team.vercel.app/admin/login"
  },
  "test_url_overrides": {
    "167": "https://myapp-git-feature-branch-team.vercel.app/specific-feature",
    "234": "https://myapp-git-feature-branch-team.vercel.app/new-component"
  }
}
In this example:
  • Test suite 17: All tests start from preview root, login at /auth/login
  • Test suite 23: All tests start from preview /dashboard, admin login at /admin/login
  • Tests 167 and 234: Override suite settings with specific feature URLs
